POS 500
Most modular POS System
with Intel® inside
Above-average performance for
Windows POS apps
with Intel® Celeron® J6412
POS 500
Above-average performance for
Windows POS apps
with Intel® Celeron® J6412
MSR ISO 7811,
supports 1, 2 & 3
track.
10.1“ (1200x800)
(Non-Touch)
Available in four versions for your extensions.
OPTIONAL PERIPHERALS
This 2 in 1 add-on device combines a MSR reader and an iButton reader. It makes locking and unlocking the cash register easy and convenient.
Reinforcement of stability by external impact
Transparency and
Brightness
Greater precision
and Reliability
The POS 500 has a variety of connections.

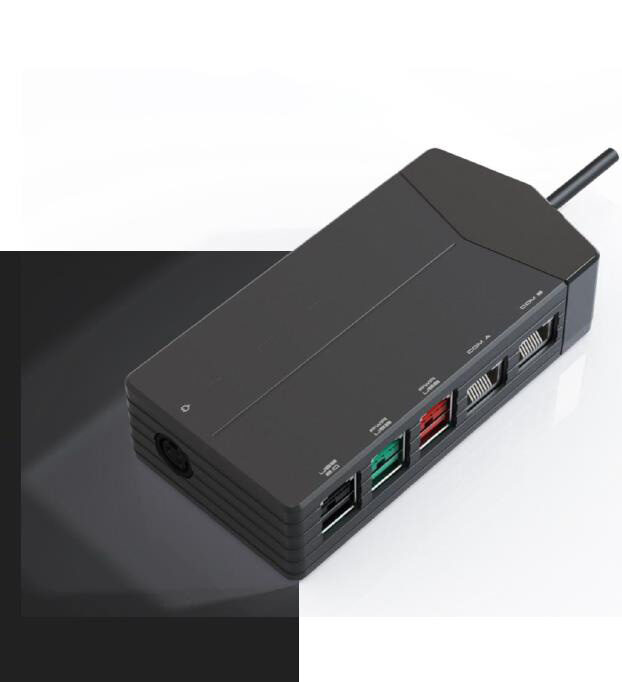

In addition, an External I/O Box can be added to enable further connections
OPTIONAL EXTENSION
On request:
update your device by yourself

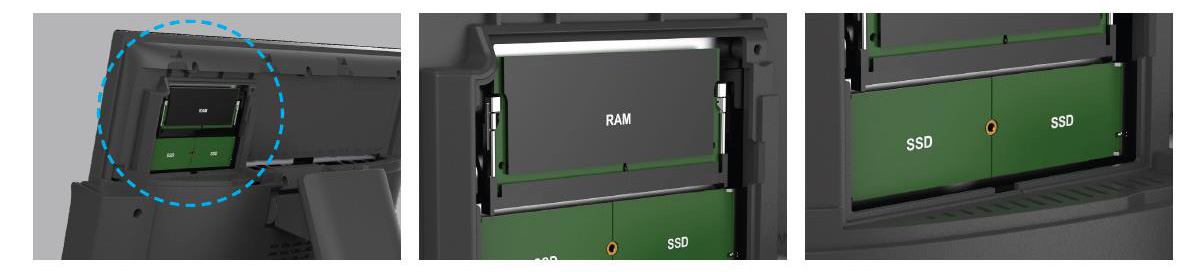

Slot Cover
removing
RAM
replacement
SSD
replacement
Open the cover located on the back
Replacement and fixation can be done convenienty without special tools
Up to 2 SSD can be inserted
Intel® Celeron® J6412
1.5 M Cache, up to 2.60 GHz
8 GB Standard,
DDR4 3200 MT/s,
1 x Socket x SODIMM (Max. 32 GB)
15.6" Touch Screen (Main Display)
optonal:
10.1" Non-Touch (2nd. Display)
NVMe M.2 2242-D2-M;
Up to 2 units can be installed
Factory default:
NVMe M.2 2242 128 GB
RJ-45 to D-sub 9
Gigabit Ethernet (RJ-45)
Anodised Aluminium
4-pin DIN jack adapter 24 V, 6.35 A (powered USB + EXT IO BOX Option)
Complies with ISO 7811,
supports 1 & 2 & 3 Track
Dallas i-button Reader + MSR Reader Combi only
2x USB 2.0 (12V)
1x USB 2.0 (24V)
2x RJ45 (Full Signal)
m.2 for WiFi/BT
